Model Name

• Indoor: HSU-19K(INV)(H&C)
• Outdoor: HeatCool(INV)(Pro)
• Category: Inverter
• Series: Inverter

Capacity and Parameters

• Type: Inverter
• Ton Range (TR): 1.6 Ton
• Capacity(BTU): 19000
• Rated Cooling Capacity (W): 5570
• Rated Heating Capacity (W): 19000
• Rated Power Input Cooling (W): 1720
• Rated Power Input Heating (W): 1630
• Max. Power input Cooling (W): 2000
• Max. Power input Heating (W): 2000
• Energy Effeciency Ratio (EER): 2.93
• Seasonal Energy Efficiency Ratio (SEER):: 3.80
• Coefficient of Performance (COP): /
• Rated Running Current (A) Cooling: 7.5
• Rated Running Current (A) Heating: 7.2
• Max.Running Current (A) Cooling: 8.6
• Max.Running Current (A) Heating: 8.9
• Power supply (Ph,V,Hz): 1/230/50HZ
• Air Circulation (m3/h): 1100
• Moisture Removal (10-3m3/h): /
• Refrigerant Standard (Kg): .970
• Refrigerant Type: R32
• Refrigerant Pipe Liquid Side Diameter (mm): 6
• Refrigerant Pipe Gas Side Diameter (mm): 12
• Compressor Type: Rotary
• Evaporator/Condenser: 100% 7mm Grooved Copper
• Heat Exchangers: Golden Fin

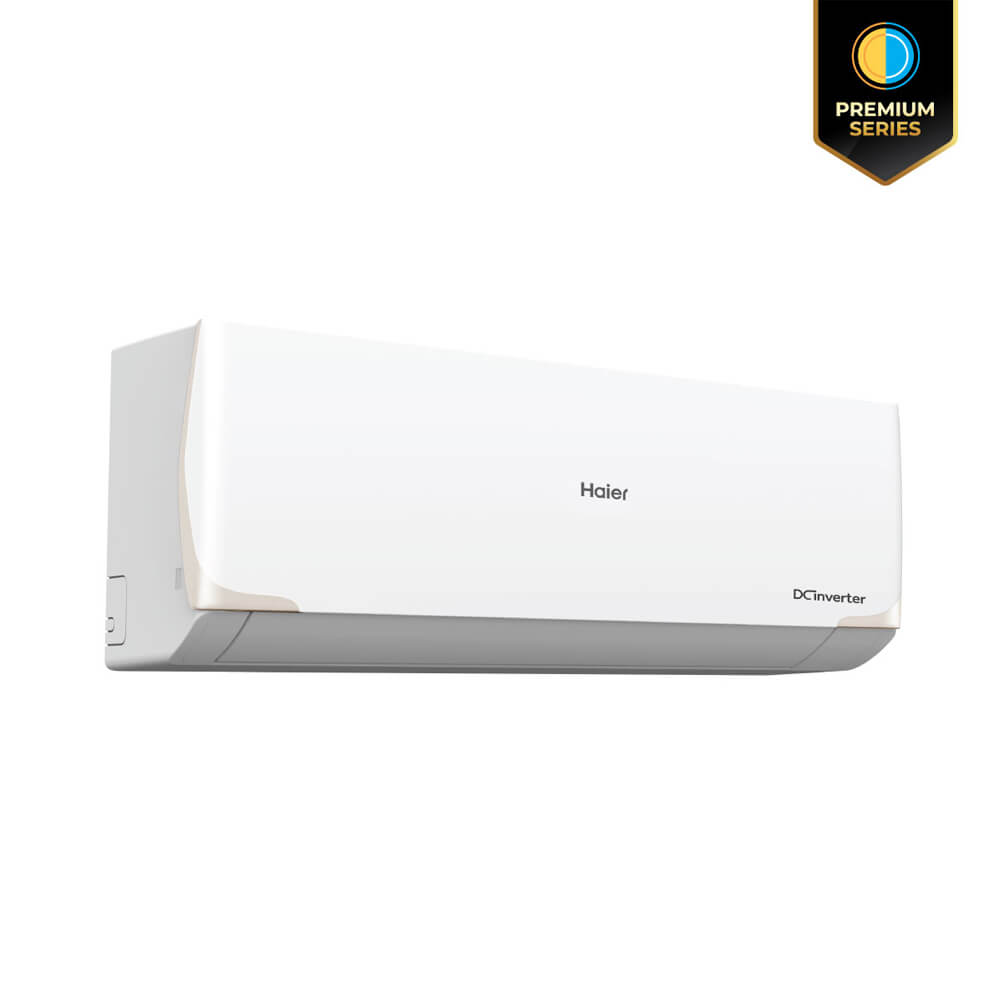

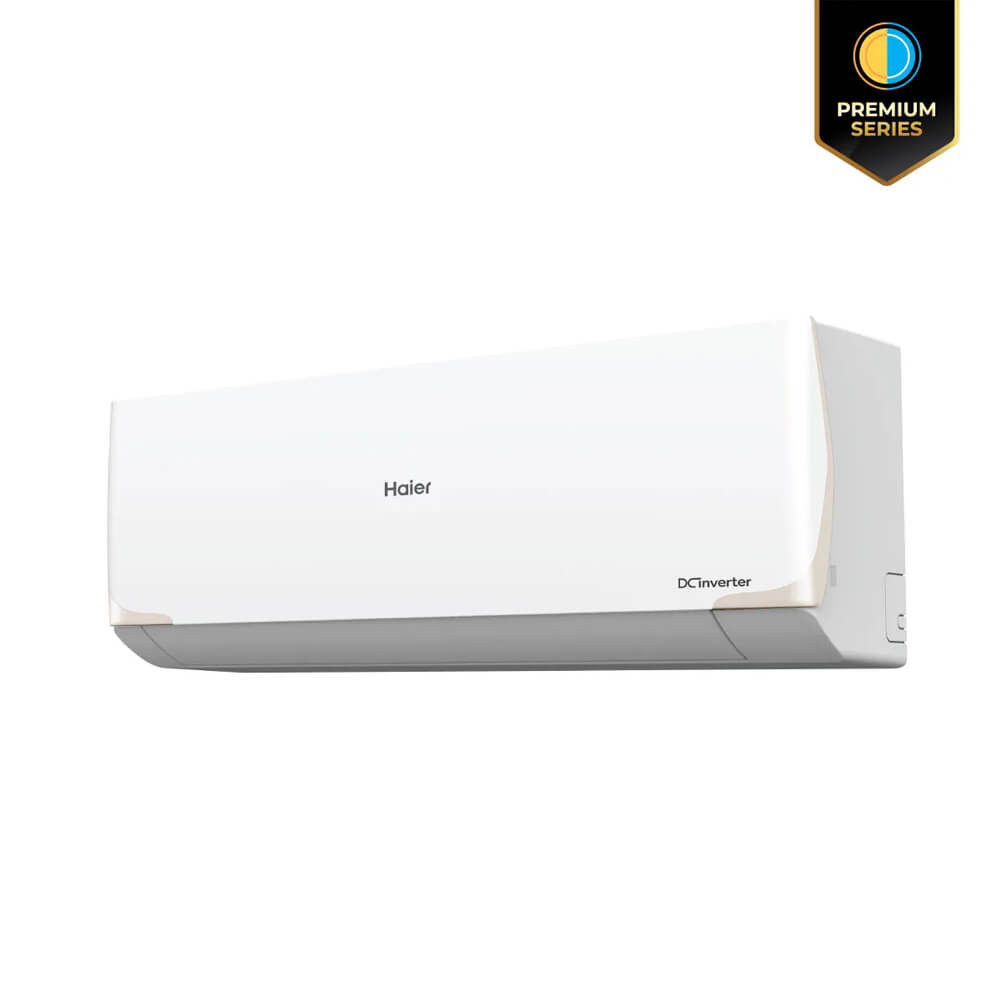

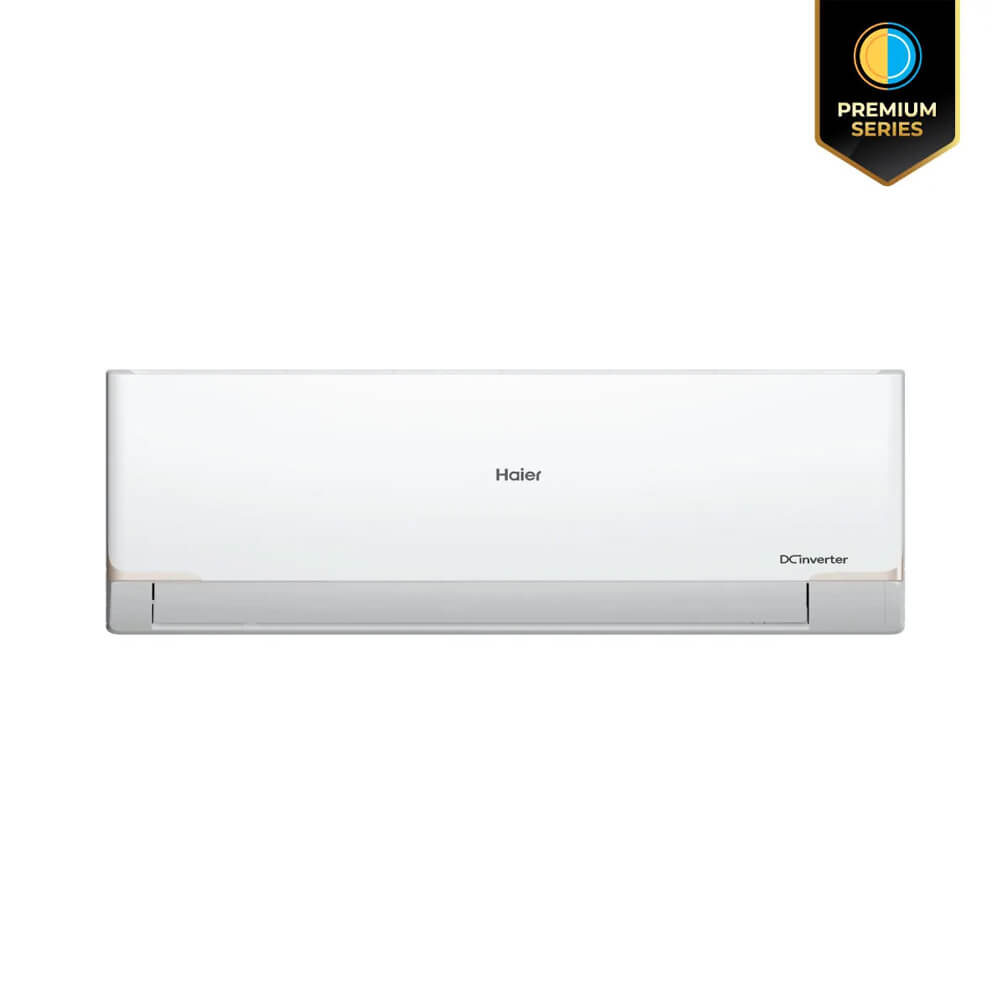

Indoor

• Indoor Net dimension (mm) W/D/H: 975*220*318
• Indoor Package dimension (mm) W/D/H: 1050*397*301
• Indoor Net weight (kg): 13
• Indoor Gross weight (kg): 14.5
• Indoor Sound power level [dB(A)] Hi/Mid/Lo: 47/43/39

Outdoor

• Outdoor Net dimension (mm) W/D/H: 820*306*642
• Outdoor Package dimension (mm) W/D/H: 942*392*693
• Outdoor Net weight (kg): 35
• Outdoor Gross weight (kg): 38
• Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So: 55

Air Flow Direction

• Up & Down: Auto
• Left & Right: Manual

User Functions

• Heating Cooling: YES
• Wifi:: Yes
• Voice Control: Yes
• Energy Savings:: Yes (Up to 65%)
• Self Clean:: Yes
• ECO Mode:: Yes
• Turbo Function:: Yes
• Auto Restart Function:: Yes
• Sleep Mode:: Yes
• Low Noise:: Yes
• Timer:: Yes
• Quick & Easy Installation:: Yes
• Child Lock:: Yes
